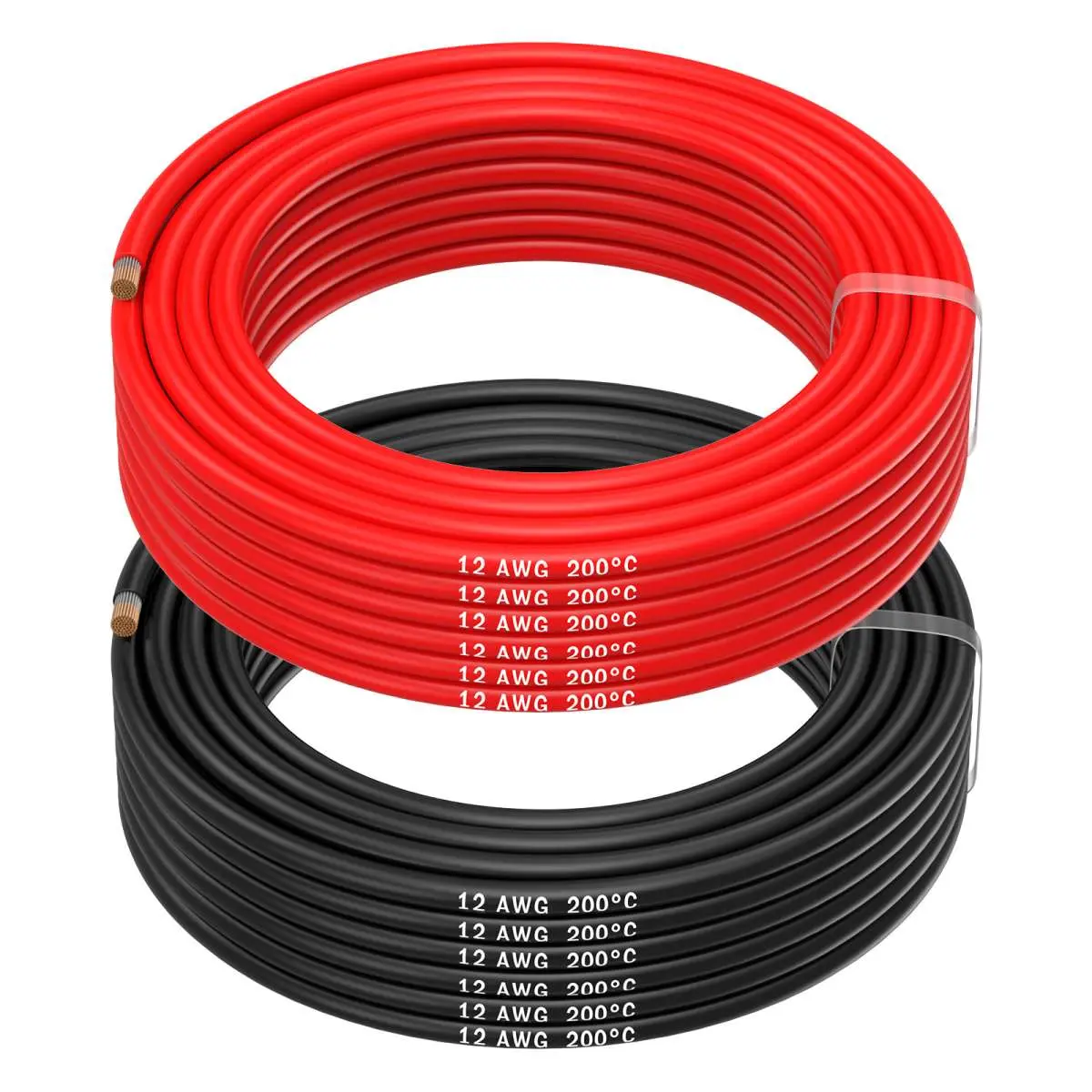

12 AWG Ultra Flexible Silicone Wire

12 AWG Ultra Flexible Silicone Wire

12 AWG silicone wire excels in high-current, flexible applications with its densely stranded tinned copper conductor and silicone rubber insulation, designed for RC power systems, motors, inverters, and automotive wiring.

Key features

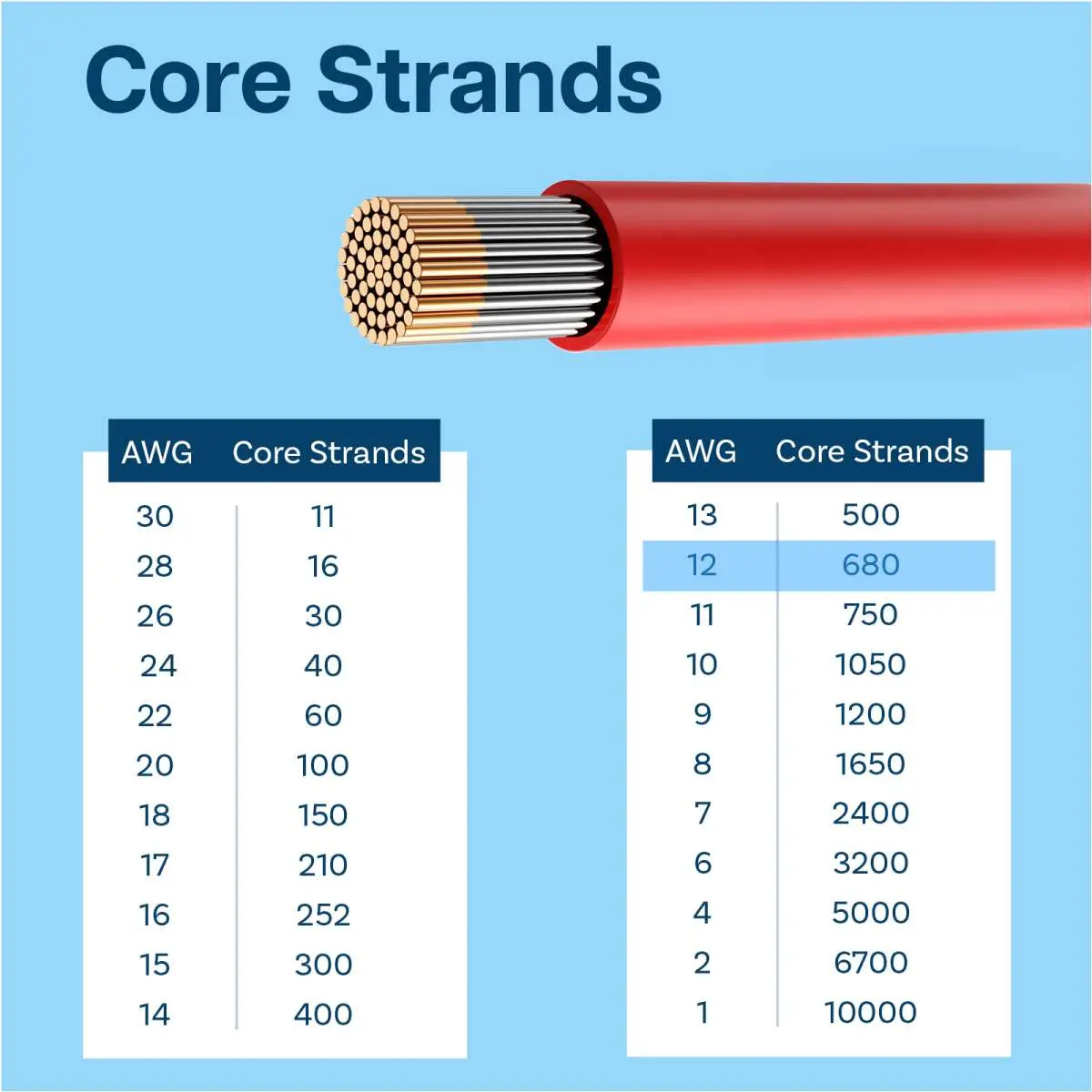

  • Maximum flexibility: 680 strands of 0.08 mm tinned copper (3.31 mm² cross-section) for superior handling in vibration-prone setups.
  • Tinned copper resists oxidation while providing low resistance and high conductivity for efficient energy transfer.
  • Silicone rubber insulation withstands oils, chemicals, and extreme flexing without hardening or cracking.

Construction details

  • Conductor: Tinned copper, 680 × 0.08 mm strands with ~2.41 mm diameter.

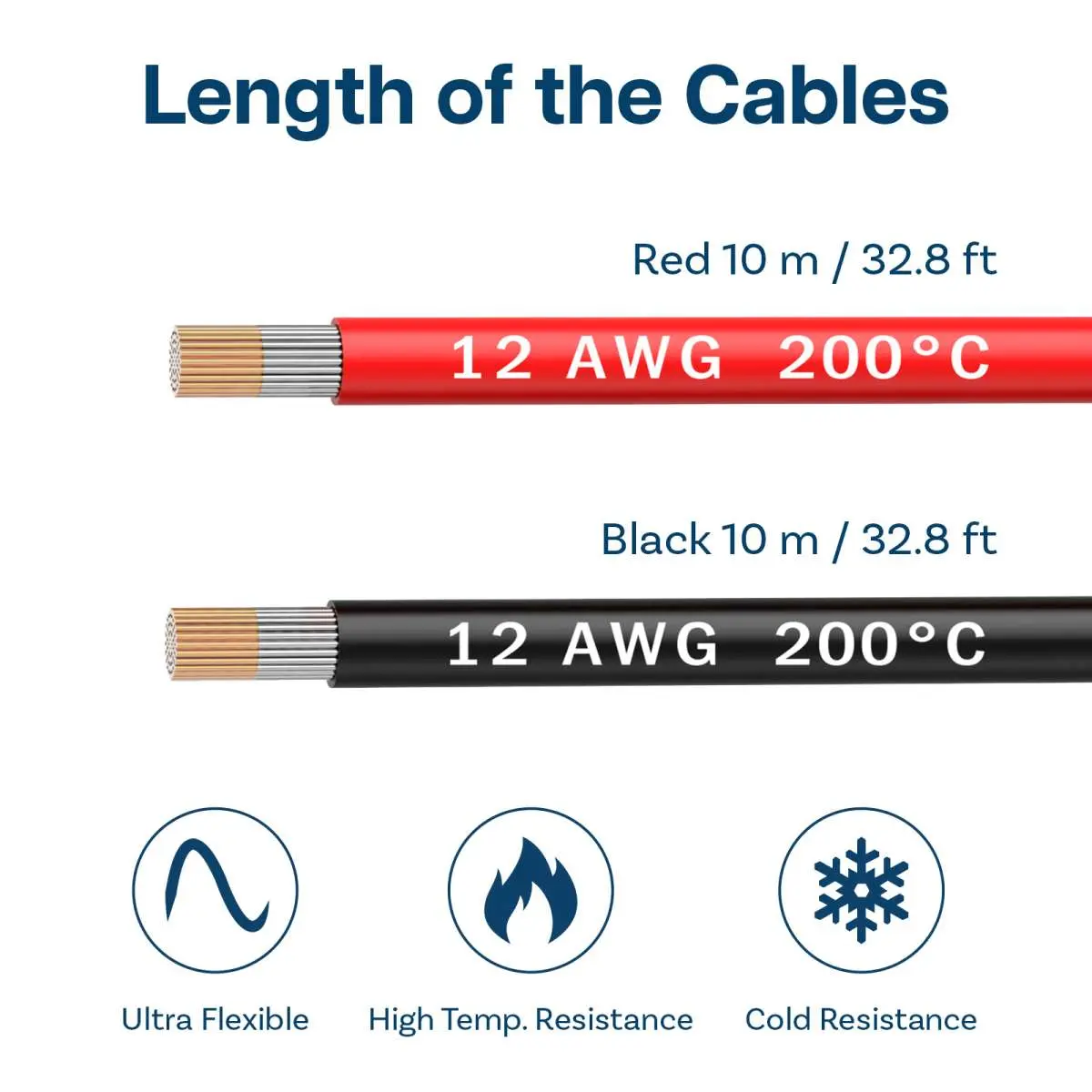

  • Insulation: Silicone rubber, ~4.5 mm overall outer diameter, often supplied as 10 m red + 10 m black for battery pairs.

Electrical performance

  • Rated voltage: 600V with temperature tolerance from -60°C to +200°C for harsh environments.
  • Handles up to 88A continuous current, ideal for power-hungry motors and batteries with minimal heat buildup.

Typical applications

  • RC vehicles, drones, ESCs, and large battery leads requiring robust, heat-resistant cabling.
  • Inverters, electric motors, industrial machinery, and custom automotive harnesses.
Material

Tinned Copper

Voltage

600 V

Colour

Black Red

Specification

680×0.08

Number of Cable Strands

680
