Key features

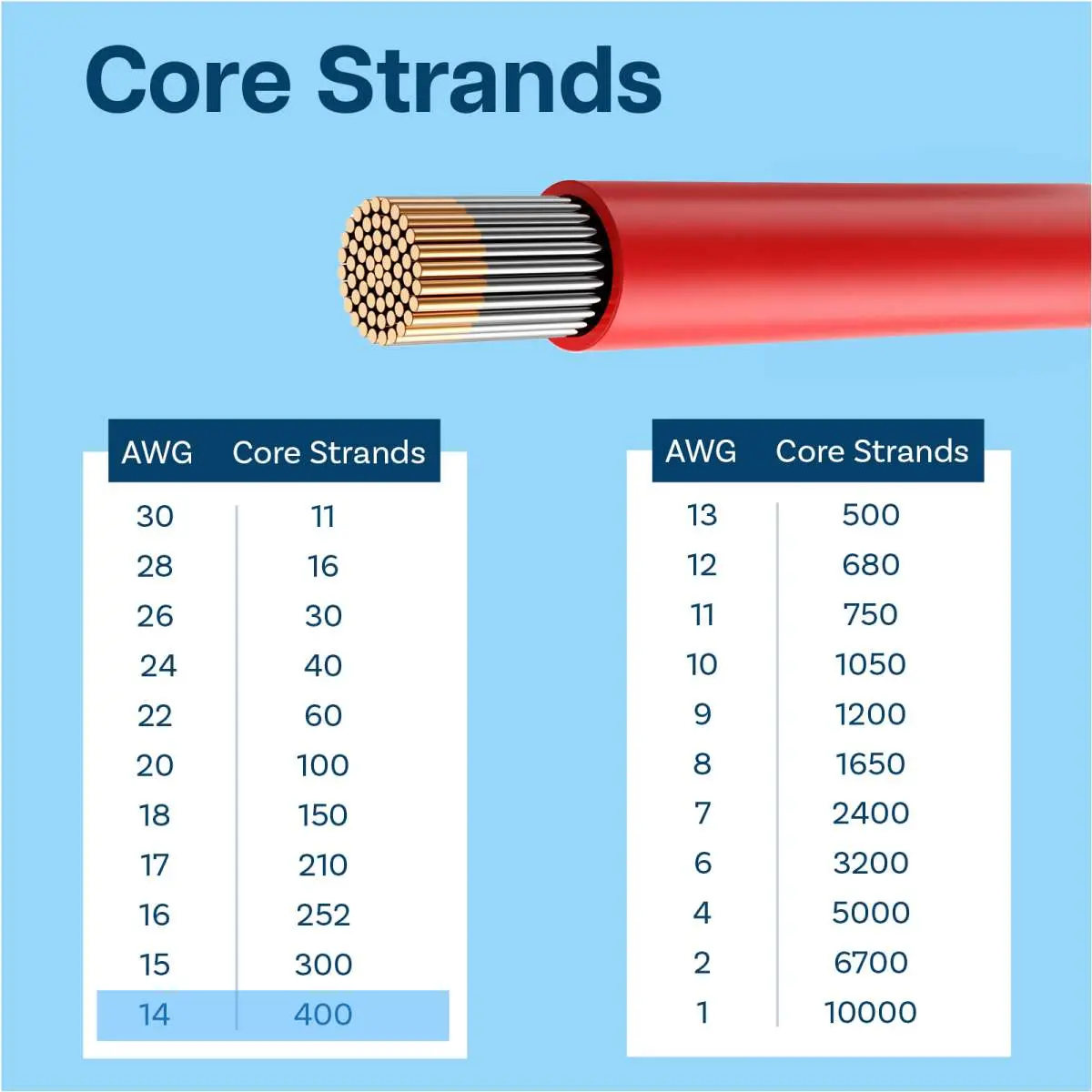

• High flexibility: Fine‑stranded tinned copper conductor (400 strands of 0.08 mm) provides excellent flexibility and ease of routing in tight spaces.​

• High‑purity copper with tin plating for improved corrosion resistance and stable conductivity over time.​

• Soft silicone insulation maintains flexibility even in cold conditions and resists cracking or hardening.

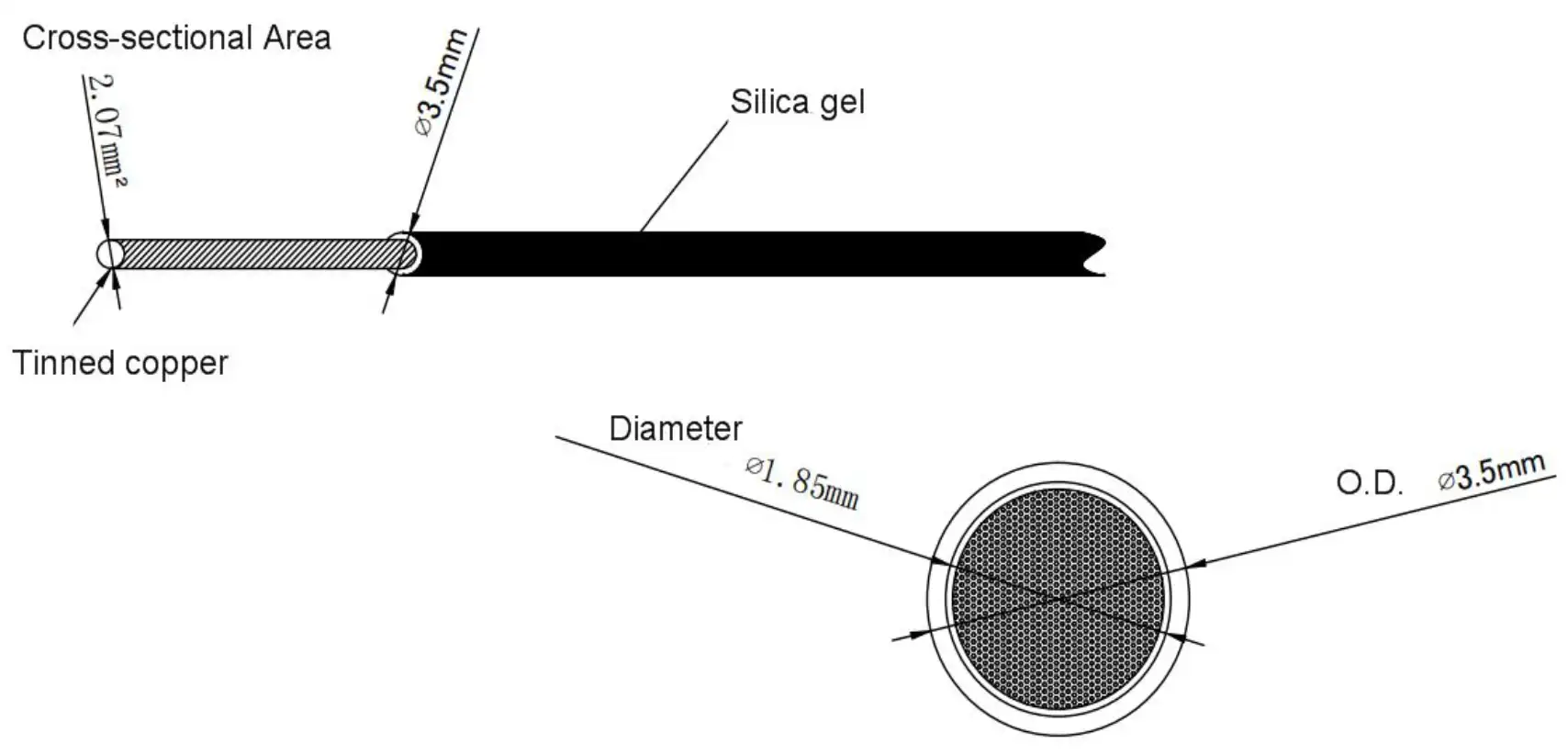

Construction details

• Conductor material: Tinned copper, 400 × 0.08 mm strands for low resistance and high current handling.​

• Conductor diameter: Approximately 1.85 mm for robust mechanical strength while staying flexible.​

• Insulation material: Silicone (silica gel) with about 0.9 mm wall thickness for enhanced dielectric strength and durability.​

• Overall diameter: About 3.5 mm, suitable for standard terminals, connectors, and cable management accessories.​

Electrical performance

• Low conductor resistance of around 15.6 Ω/km contributes to efficient power delivery with reduced voltage drop on longer runs.​

• Designed for DC power lines, battery leads, inverters, chargers, LED lighting, and high‑current electronics where reliable performance is critical.​

Typical applications

• RC models, drones, and battery packs where flexible, high‑current wiring is required.​

• Automotive harnesses, 3D printers, CNC machines, robotics, and DIY electronics projects.​

• Power distribution inside control panels, test benches, and lab setups needing heat‑resistant, flexible wiring.​
