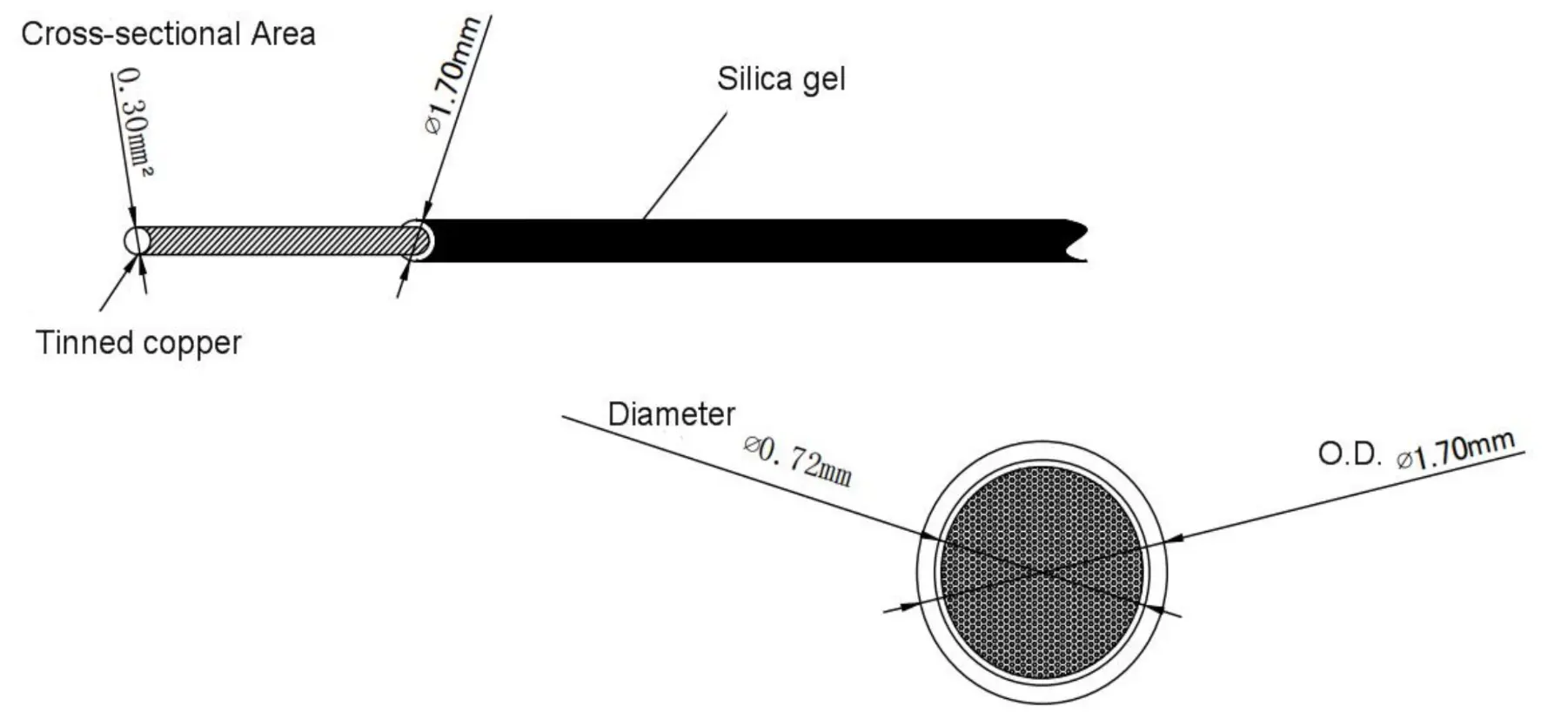

Construction details

• Conductor: Tinned copper, 60 × 0.08 mm strands with a 0.72 mm conductor diameter.​

• Cross-sectional area: 0.30 mm² for light power and signal applications.​

• Insulation: Silica gel with 0.55 mm wall thickness, giving an overall diameter of about 1.7 mm.​

Electrical performance

• Conductor resistance: 88.6 Ω/km for efficient, short-run signal and low-current power transmission.​

• Rated voltage: 600 V with a rated current of 9.79 A under specified conditions.​

• Temperature range: -60°C to +200°C, suitable for harsh or high-temperature environments.​

Typical applications

• Internal wiring for small electronics, control boards, and sensors where compact, flexible wiring is required.​

• LED strips, low-current power leads, RC and hobby electronics signal lines.​

• Prototyping, test leads, and breadboard jumpers needing durable, heat-resistant insulation.​
