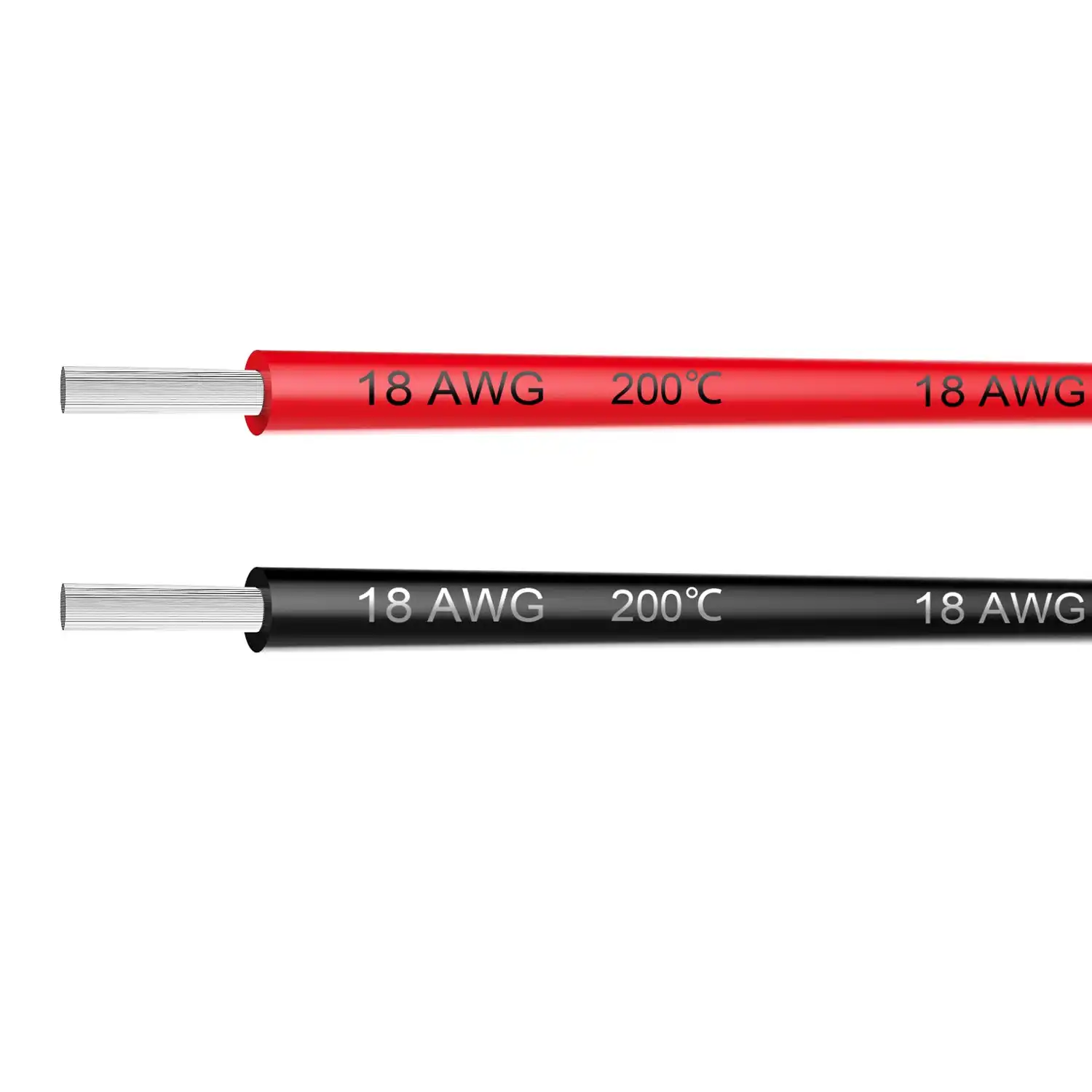

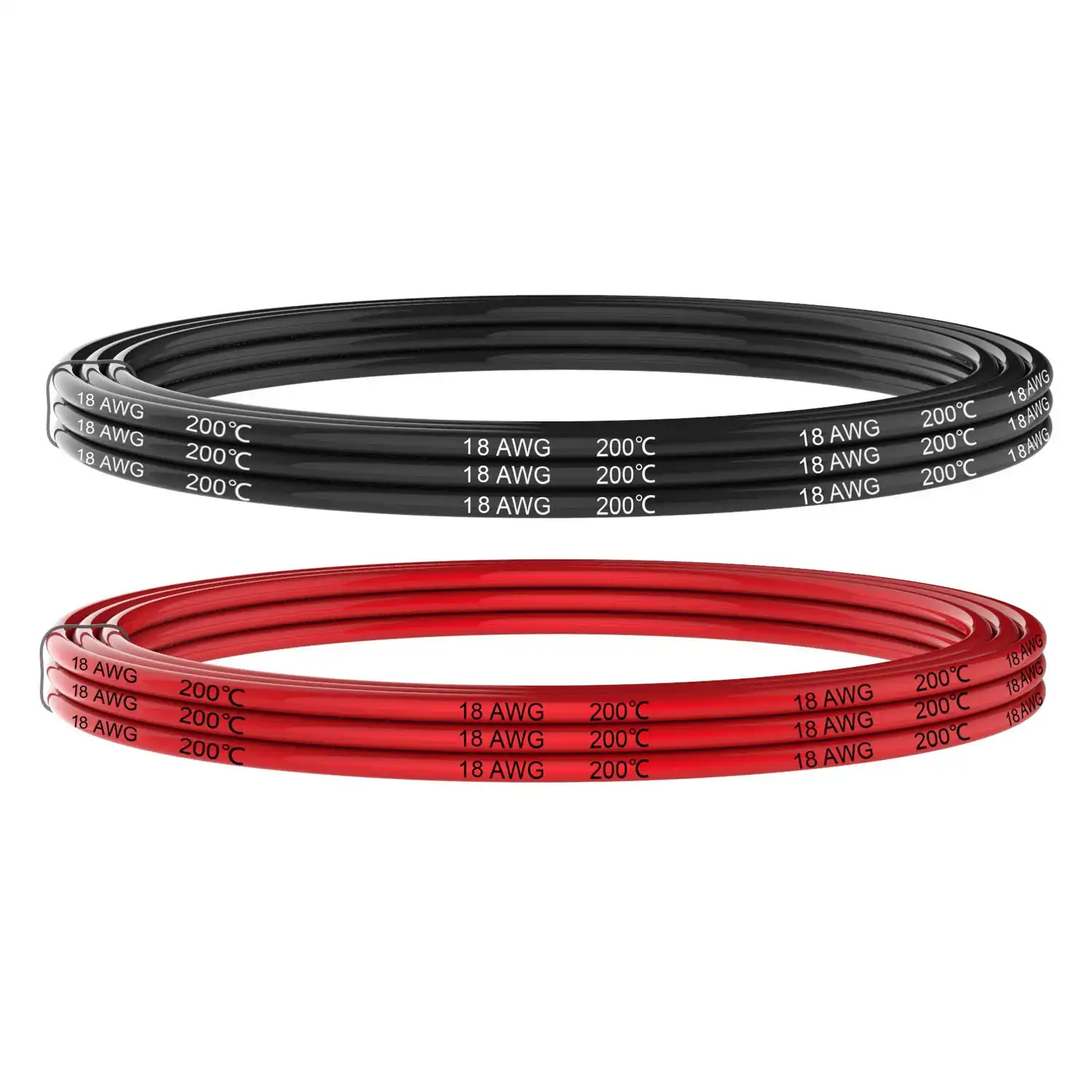

18 AWG Ultra Flexible Silicone Wire

18 AWG Ultra Flexible Silicone Wire

18 AWG Ultra Flexible Silicone Wire - Image 2

18 AWG Ultra Flexible Silicone Wire - Image 3

18 AWG Ultra Flexible Silicone Wire - Image 4

18 AWG Ultra Flexible Silicone Wire - Image 5

18 AWG Ultra Flexible Silicone Wire

16 AWG silicone wire features a highly flexible, multi-strand tinned copper conductor encased in durable silica gel insulation, perfect for high-current applications in RC vehicles, drones, 3D printers, and electronics projects.

Key Features

Exceptional flexibility from 252 strands of 0.08 mm tinned copper, ensuring easy installation in confined spaces.
Corrosion-resistant tinned copper maintains reliable conductivity in demanding environments.
Silicone insulation stays pliable across a wide temperature range, preventing cracks or brittleness.

Download Technical Datasheet

Category: Silicon Wires

Description
Technical Details

Construction Details

Conductor: Tinned copper with 252 × 0.08 mm strands, 1.47 mm diameter, and 1.30 mm² cross-sectional area.
Insulation: Silica gel, 0.8 mm thick, yielding a 3.0 mm overall diameter for compatibility with standard connectors.

Electrical Performance

Conductor resistance of 24.4 Ω/km supports efficient power transmission with minimal voltage drop.
Rated for 600V and 42.4A, with a temperature range of -60°C to +200°C for extreme conditions.

Typical Applications

Battery leads and power wiring in RC models, drones, and high-draw electronics.
Automotive, robotics, CNC machines, and DIY projects requiring heat-resistant flexibility.
Internal wiring for control panels, inverters, and lab equipment.

Material	Tinned Copper
Voltage	600 V
Specification	150×0.08
Colour	Black Red
